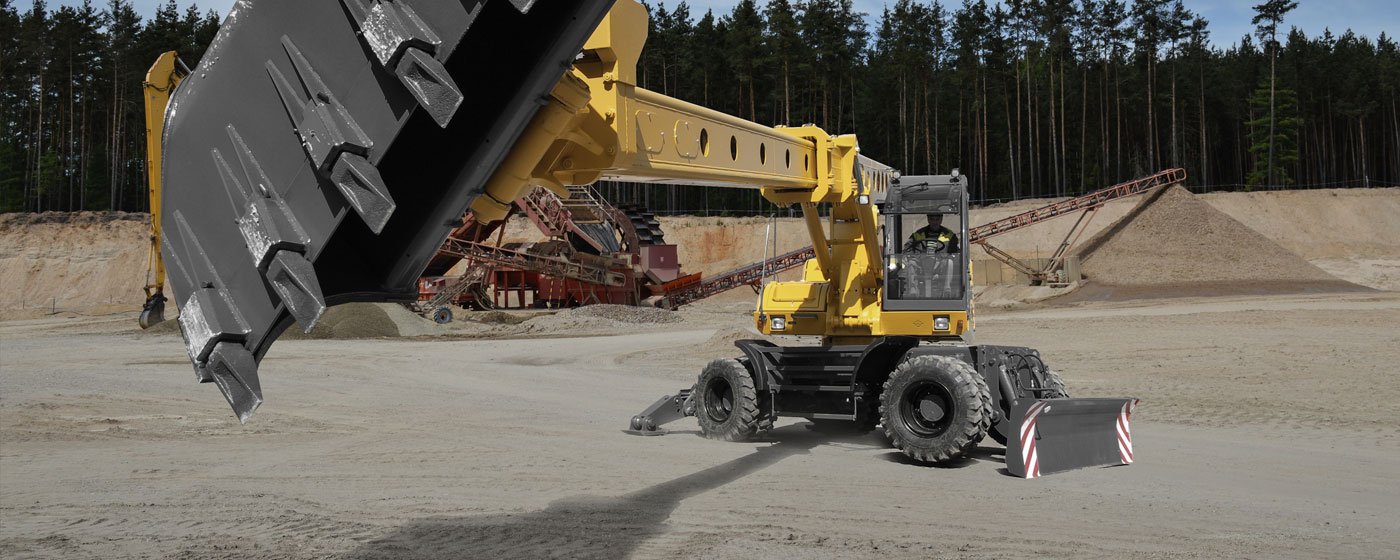

MULTI-PURPOSE TELESCOPIC EXCAVATOR

UNIVERZÁLNY DOKONČOVACÍ STROJ
MULTI-PURPOSE TELESCOPIC EXCAVATOR

Technical specifications

Weights and loads
Machine operating weight 17 300 kg ± 3%
Front axle load 79 kN
Rear axle load 99 kN
Max. pulling force 100 kN

Driving features
Steering axle CARRARO ALPP 125
Max. transport speed 20 km/h
Front approach angle 26 °
Rear overhang angle 20 °
Longitudinal crossing angle 146 °
Lateral crossing angle 125 °

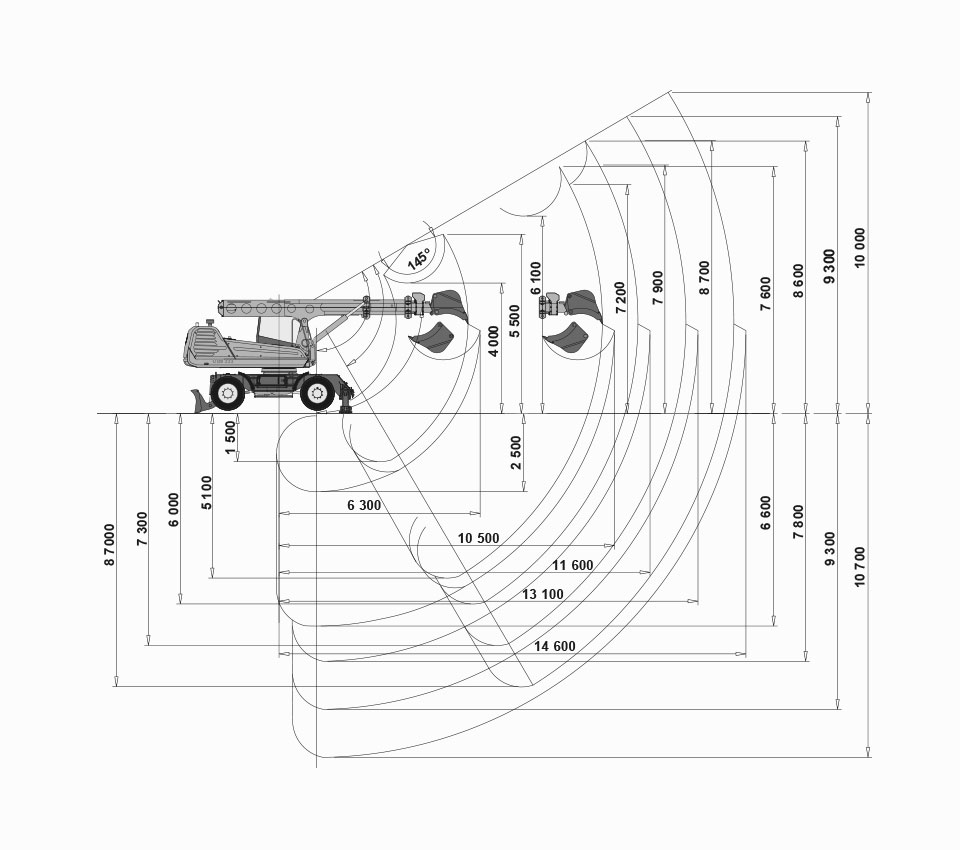

Working parameters
Maximum total excavating force from thrust
and retraction of the boom 85 kN
Downforce on the quick coupler:
» retracted telescope 60 kN
» extended telescope 40 kN
» with 1,5 m extension arm 35 kN
» with 3 m extension arm 30 kN
» with 4,5 m extension arm 27 kN
Tilting moment on the quick coupler 58 kNm
Max. Superstructure revolutions 8 rpm
Max. Tool revolutions 20 rpm
Conversion of the rotating head 1:37
Reduced moment on the tool axis rotation 5,5 kNm
Technical specications
Force during telescope extension 78 kNS
Force during telescope retraction 68 kN
Rotation time of the supperstructure by 360° 7,5 sec
Rotation time of the tool by 360° 3,0 sec
Auxiliary hydraulics – ow rate 210 l/min. pri 150 bar
