Technical specifications

» Machine length: 9450 mm
» Machine width: 2500 mm
» Machine height: 3980 mm
» Height of chassis above ground: 365 mm

Working parameters
 Output at shovelling (excavating): 115 m3.h-1
- retracted telescope: 7 000 kg
- extended telescope: 2 600 kg
» Maximum total excavating force
from thrust and retraction of the boom: 85KN
» Load capacity on the tilting point of the telescope
(without the use of extension arms)
» Superstructure revolutions: 8 ot.min-1
» Tool revolutions: 20 ot.min-1
» Maximum travel speed: 100 km.h-1
» Climbing ability on a hard surface: 50,7 %
» Overall machine weight: 24 800 kg

TATRA 815 chassis
» Three axles, with permanent drive
of both rear axles, with possibility
to engage the front axle drive and differential
closures. 6x6 drive, chassis engine output: 230 kW

Superstructure engine

» Engine: 93 - 104kW pri 2200 ot.min-1
» General description: compression ignition, four-stroke with direct
fuel injection, in-line, vertical
» Cooling: liquid-type with forced
circulation and thermo regulator
» Lubrication: engine oil circulation under pressure
» Number/ volume of cylinders: 4 / 4,5 dm3
» Hydraulic system: REXROTH

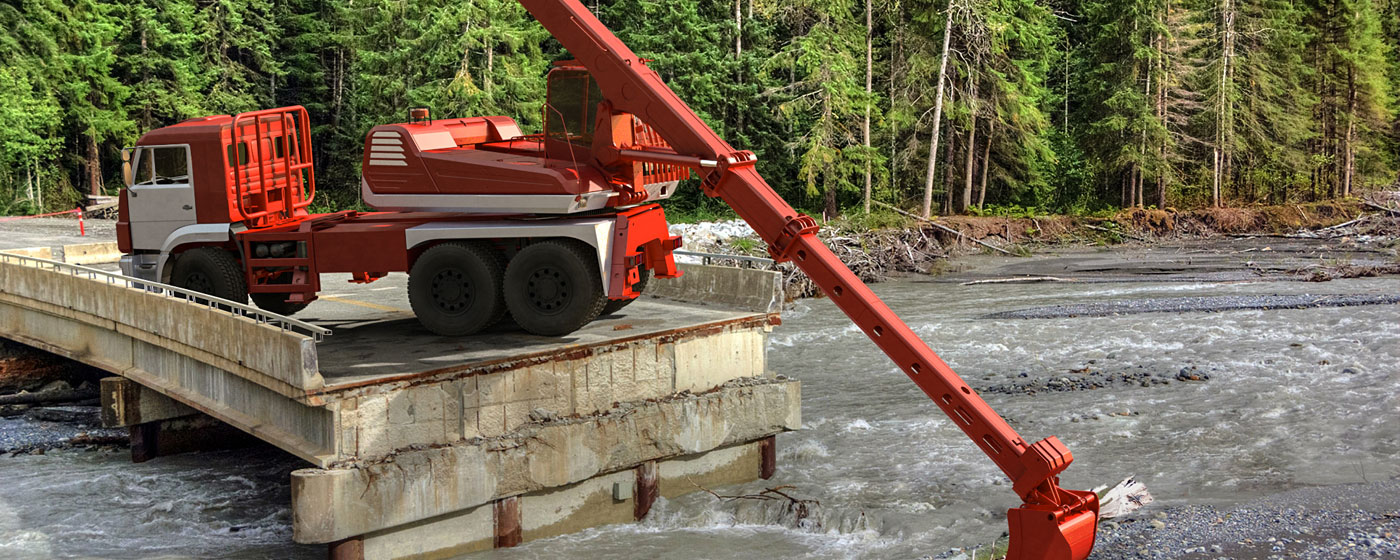

Working equipment

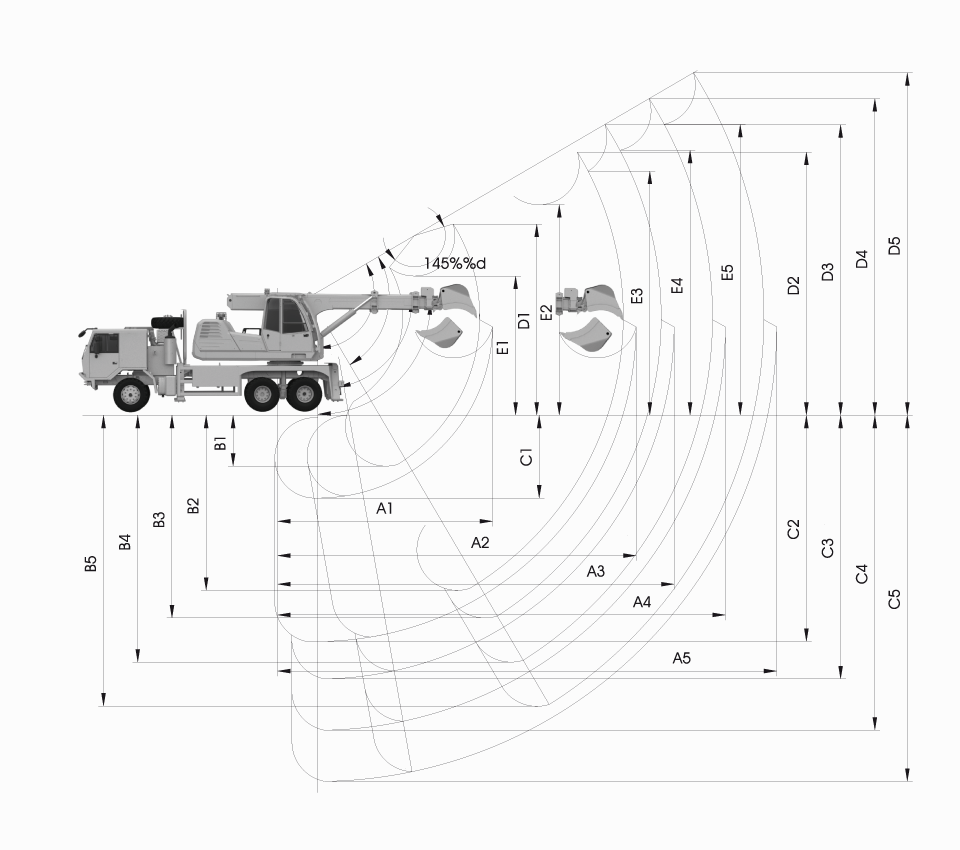

A telescopic boom - basic working range: + 30°, –60°, when readjusted positioning arm: 0°, - 90° from the
horizontal plane.
The range of tool tilting: 145°, 145°, both directional 360°rotation of the tool
Additional hydraulics: for hydraulically controlled attachments is mounted in the working tool
rotation circuit (as a standard for modication 41 and on request for
modication 42) and enables the use of hydraulically driven

Operation modes of UDS 214 in modification 41

The machine UDS 214 modification 41 machine can operate in two modes:
» WORK mode – working with the superstructure
» DRIVE mode - enables control of the auxiliary drive – micro travel
(to cover short distance on site), as well as the stabilizing supports directly from the superstructure cabin, without the need to start the
undercarriage engine.
The UDS 214 modication 42 is without micro travel function (auxiliary drive).

Hydraulic power units

» double hydro-generator A8 VO 107
» gear hydro-generator 1PF 2G2 – 016: non-regulatory
Distributors: seven-circuit monoblock 7M8-22
